Extract Phases from weighted RN

This function will extract phases (regions of attraction in phase space) based on a weighted RN object created with function rn. The assumption is that coordinates in state space that are either close in terms of distance, or are re-visited with short recurrence times, or with high-frequency, are regions of attraction for the system.

Usage

rn_phaseInfo(
  RN,
  maxPhases = NA,
  minStatesinPhase = 2,
  maxStatesinPhase = NROW(RN),
  selectionMethod = c("degree", "strength", "closeness", "betweenness")[1],
  inverseWeight = TRUE,
  returnCentroid = c("no", "mean.sd", "median.mad", "centroid")[1],
  removeSingularities = FALSE,
  standardise = c("none", "mean.sd", "median.mad", "unit")[4],
  returnGraph = FALSE,
  doPhaseProfilePlot = FALSE,
  plotCentroid = FALSE,
  dimNames = NULL,
  colOrder = FALSE,
  phaseColours = NULL,
  doSpiralPlot = FALSE,
  doPhaseSeriesPlot = FALSE,
  doPhaseDensityPlot = FALSE,
  doPhaseSpacePojectionPlot = FALSE,
  showPhaseSize = TRUE,
  showEpochLegend = TRUE,
  epochColours = NULL,
  epochLabel = "Phase",
  excludeVars = "",
  excludePhases = "",
  excludeTransients = FALSE,
  excludePhaseNeighbours = FALSE,
  excludeSingularities = FALSE,
  excludeNonrecurring = TRUE,
  alphaDensity = 0.4,
  splitFacets = NA,
  silent = FALSE
)

Arguments

RN: A matrix produced by the function rn
maxPhases: The maximum number of phases to extract. These will be the phases associated with the highest node degree or node strength. All other recurrent points will be labelled with "Other". If NA, the value will be set to NROW(RN), this will return all the potential phases in the data irrespective of their frequency/strength of recurrence (default = NROW(RN))
minStatesinPhase: A parameter applied after the extraction of phases (limited by maxPhases). If any extracted phases do not have a minimum number of minStatesinPhase + 1 (= the state that was selected based on node strength), the phase will be removed from the result (default = 1)
maxStatesinPhase: A parameter applied after the extraction of phases (limited by maxPhases). If any extracted phases exceeds a maximum number of maxStatesinPhase + 1 (= the state that was selected based on node strength), the phase will be removed from the result (default = NROW(RN))
selectionMethod: How will the most "important" node be selected? Should be the name of an igraph::igraph function that returns local (vertex) measures (default = "degree")
inverseWeight: Whether to perform the operation 1/weight on the edge weights. The default is TRUE, if the matrix was weighted by a distance metric (weightedBy = "si") edges with smaller distances (recurring coordinates closer to the current coordinate) have greater impact on the node strength calculation used to select the phases. If the matrix was weighted by recurrence time (weightedBy = "rt") and inverseWeight = TRUE, recurrent points with shorter recurrence times will have greater impact on the strength calculation. If weightedBy = "rf", lower frequencies will end up having more impact. (default = TRUE)
returnCentroid: Values can be "no", "mean.sd", "median.mad", "centroid". Any other value than "no" will return a data frame with the central tendency and deviation measures for each phase (default = "no")
removeSingularities: Will remove states that recur only once (nodes with degree(g) == 1) (default = FALSE)
standardise: Standardise the series using ts_standardise() with adjustN = FALSE (default = "mean.sd")
returnGraph: Returns all the graph object objects of the plots that have been produced (default = FALSE)
doPhaseProfilePlot: Produce a profile plot of the extracted phases (default = TRUE)
plotCentroid: Plot the centroid requested in returnCentroid? (default = FALSE)
dimNames: A vector of titles to use for the dimensions. If NULL the values will be read from the attribute of RN.
colOrder: Should the order of the dimensions reflect the order of the columns in the dataset? If FALSE the order will be based on the values of the dimensions observed in the first extracted phase (default = FALSE)
phaseColours: Colours for the different phases in the phase plot. If epochColours also has a value, phaseColours will be used instead (default = NULL)
doSpiralPlot: Produce a plot of the recurrence network with the nodes coloured by phases (default = FALSE)
doPhaseSeriesPlot: Produce a time series of the phases as they occur with a marginal histogram of their frequency (default = FALSE)
showPhaseSize: Show the number of states in each phase in the labels (default = TRUE)
showEpochLegend: Should a legend be shown for the epoch colours? (default = TRUE)
epochColours: A vector of length vcount(g) with colour codes (default = NULL)
epochLabel: A title for the epoch legend (default = "Epoch")
excludeVars: Exclude specific dimension variables by name. Leave empty to include all variables (default = "")
excludePhases: Exclude Phases by their name (variable phase_name). Leave empty to include all Phases (after the other exclusion arguments) (default = "")
excludeTransients: Should the category "Transient" be excluded from plots? (default = FALSE)
excludePhaseNeighbours: Should the category "PhaseN" be excluded from plots? (default = FALSE)
excludeSingularities: Should the category "Singularity" be excluded from plots? (default = TRUE)
excludeNonrecurring: Should the category "Nonrecurring" be excluded from plots? (default = TRUE)
alphaDensity: Alpha value for the density plots
splitFacets: Integer value to indicate if sets of phases should be displayed in different facets? Pass an integer equalt to, or larger than the number of phases found to display all phases for which a density can be calculated (default = NA)
silent: Silent-ish mode (default = FALSE)
doPhaseSpaceProjectionPlot: produce a 2D umap projection of the phases (default = FALSE)

Value

A data frame with information about the phases or a list object with data and graph objects (if requested). The data frame contains the phase name, number and size, as well as properties of the prototypical state that was selected by the selection method, the node number/time (maxState_time), degree (maxState_degree), strength (maxState_strength).

Details

The method used for the identification of phases is on the properties of the RN object:

If weighted by distance "si", the inverse distance will be used, which means higher weights correspond to closer states.
If weighted by recurrence time "rt", the inverse time will be used, which means higher weights correspond to faster recurrence times.

The procedure is as follows:

Identify the node with the highest strength
Identify the nodes that connect to this node
Identify the node with highest strength that does not connect to the node identified in step 1.
Repeat until criteria set in maxPhases, minStatesinPhase and maxStatesinPhase are triggered.

Examples


# Use the ManyAnalysts dataset to create a phase plot with default settings
data("manyAnalystsESM")
df <- manyAnalystsESM[4:10]
RN <- rn(y1 = df, doEmbed = FALSE, weighted = TRUE, weightedBy = "si", emRad = NA)
#> `emRad` was set to NA due to the value `weighted = TRUE`, if you want an unthresholded matrix set `weighted = FALSE`

# This returns 6 phases which have minimally 2 states

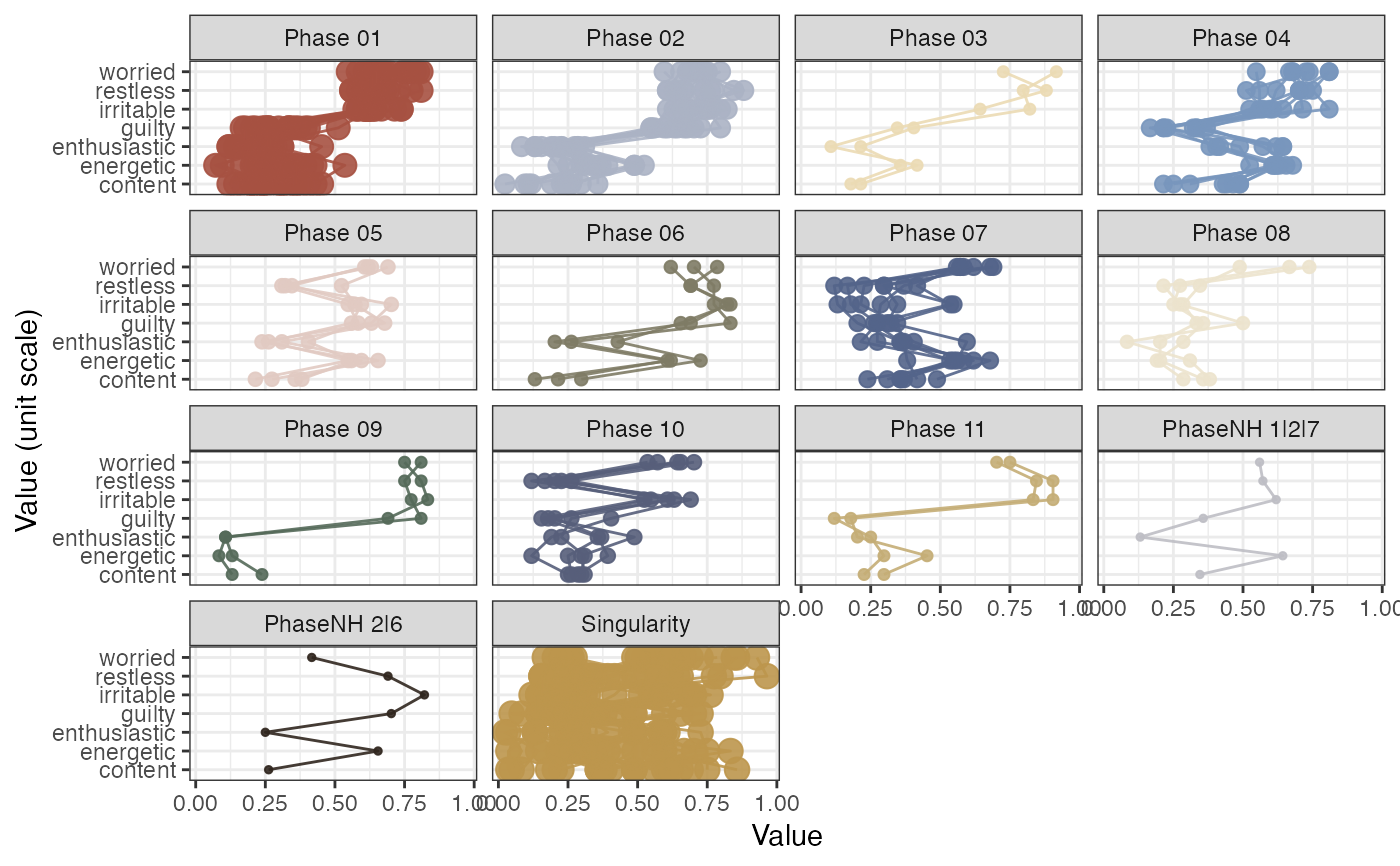

rn_phaseInfo(RN, doPhaseProfilePlot = TRUE)
#>
#> ~~~o~~o~~casnet~~o~~o~~~
#>
#> Recurring states with high similarity will be considered a phase
#>
#>
#> Looking for phases...
#> State at time 76 is template for phase 1
#> State at time 1 is template for phase 2
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=9 [Phase 01.5] | State at t=37 [Phase 01.9] | State at t=40 [Phase 01.10] | State at t=48 [Phase 01.15] | State at t=122 [Phase 01.20] >> will be labelled as Transient(s)
#>
#> State at time 17 is template for phase 3
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=4 [Phase 01.2] | State at t=10 [Phase 01.6] | State at t=13 [Phase 01.7] | State at t=35 [Phase 01.8] | State at t=46 [Phase 01.13] | State at t=47 [Phase 01.14] | State at t=122 [Phase 01.20] >> will be labelled as Transient(s)
#>
#> State at time 75 is template for phase 4
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=100 [Phase 01.18] | State at t=119 [Phase 01.19] >> will be labelled as Transient(s)
#>
#> State at time 38 is template for phase 5
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=2 [Phase 02.2] | State at t=36 [Phase 02.5] | State at t=55 [Phase 02.9] >> will be labelled as Transient(s)
#>
#> State at time 54 is template for phase 6
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=2 [Phase 02.2] | State at t=43 [Phase 02.6] | State at t=55 [Phase 02.9] | State at t=107 [Phase 02.11] >> will be labelled as Transient(s)
#>
#> State at time 85 is template for phase 7
#> State at time 7 is template for phase 8
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=60 [Phase 07.3] >> will be labelled as Transient(s)
#>
#> State at time 50 is template for phase 9
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=43 [Phase 02.6] | State at t=45 [Phase 02.7] | State at t=52 [Phase 02.8] | State at t=67 [Phase 02.10] >> will be labelled as Transient(s)
#>
#> State at time 59 is template for phase 10
#> State at time 39 is template for phase 11
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=4 [Phase 01.2] | State at t=13 [Phase 01.7] | State at t=47 [Phase 01.14] >> will be labelled as Transient(s)
#>
#> State at time 34 is template for phase 12
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=20 [Phase 01.18] | State at t=36 [Phase 02.5] | State at t=100 [Phase 07.1] >> will be labelled as Transient(s)
#>
#> State at time 89 is template for phase 13
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=16 [Phase 02.3] | State at t=43 [Phase 02.6] | State at t=67 [Phase 02.10] >> will be labelled as Transient(s)
#>
#> State at time 106 is template for phase 14
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=79 [Phase 04.2] | State at t=105 [Phase 04.5] | State at t=116 [Phase 04.6] >> will be labelled as Transient(s)
#>
#> State at time 51 is template for phase 15
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=2 [Phase 02.2] | State at t=117 [Phase 06.3] >> will be labelled as Transient(s)
#>
#> State at time 78 is template for phase 16
#> State at time 115 is template for phase 17
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=105 [Phase 04.5] >> will be labelled as Transient(s)
#>
#>
#> Found 17 phases with at least 2 states.


# Use min. number of states as the extraction criterion

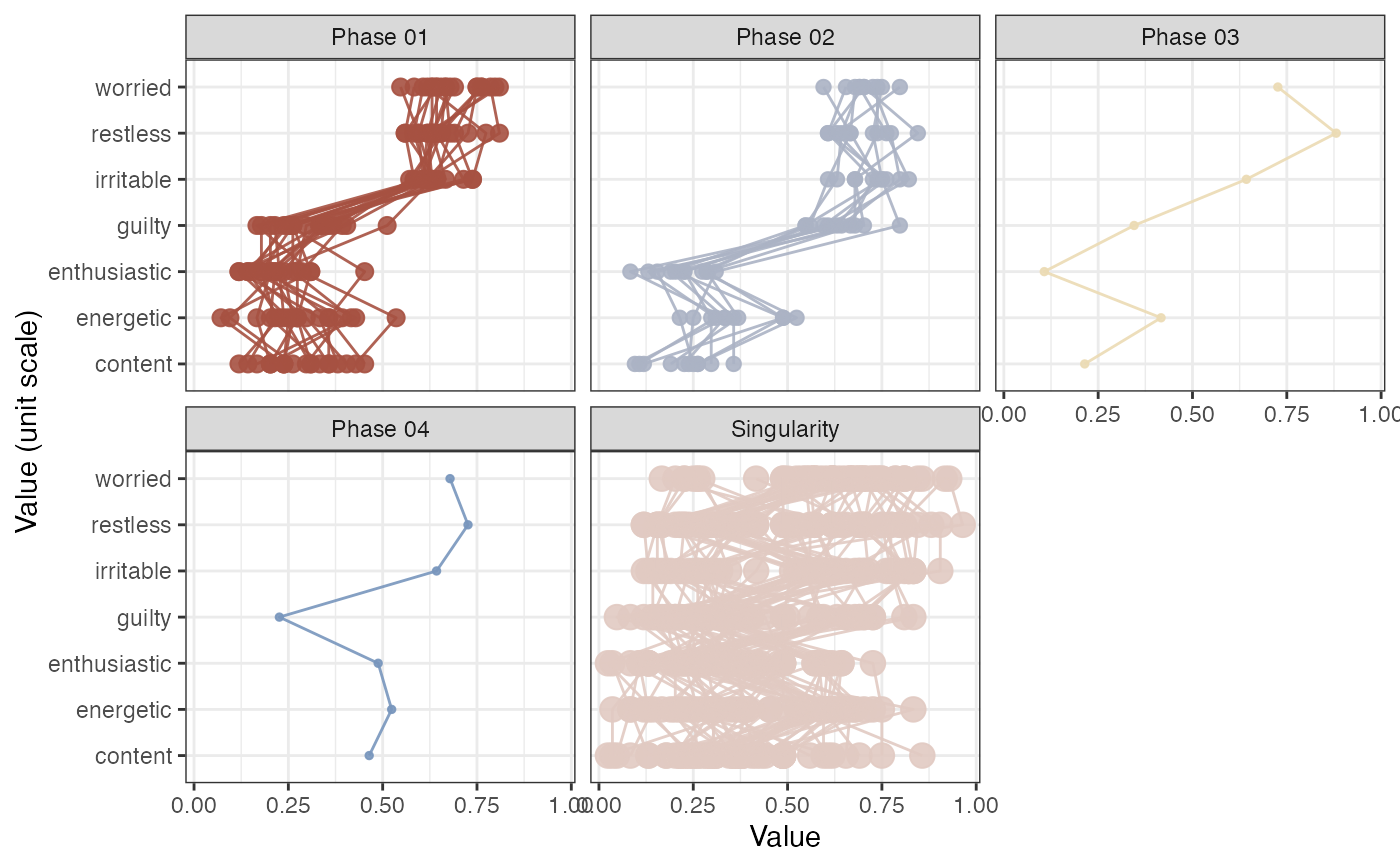

rn_phaseInfo(RN, maxPhases = NA, minStatesinPhase = 7, doPhaseProfilePlot = TRUE)
#>
#> ~~~o~~o~~casnet~~o~~o~~~
#>
#> Recurring states with high similarity will be considered a phase
#>
#> Warning: Phases with less than 7 states will be considered singularities.
#>
#> Looking for phases...
#> State at time 76 is template for phase 1
#> State at time 1 is template for phase 2
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=9 [Phase 01.5] | State at t=37 [Phase 01.9] | State at t=40 [Phase 01.10] | State at t=48 [Phase 01.15] | State at t=122 [Phase 01.20] >> will be labelled as Transient(s)
#>
#> State at time 17 is template for phase 3
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=4 [Phase 01.2] | State at t=10 [Phase 01.6] | State at t=13 [Phase 01.7] | State at t=35 [Phase 01.8] | State at t=46 [Phase 01.13] | State at t=47 [Phase 01.14] | State at t=122 [Phase 01.20] >> will be labelled as Transient(s)
#>
#> State at time 75 is template for phase 4
#> ...Found state(s) already assigned to a phase in a previous iteration step:
#> ...State at t=100 [Phase 01.18] | State at t=119 [Phase 01.19] >> will be labelled as Transient(s)
#>
#>
#> Found 4 phases with at least 7 states.
